One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension, Shimano Deore brings a tough, reliable 10-speed drivetrain and Shimano’s brand-new STEPS EP6 drive unit powers you up, along and down. A 504WH battery is supplied as standard, with the option to upgrade to a beefy 630WH for even more range.
Bicicleta Marin Rift Zone E 29″ 2023
4.390,00 € com IVA
| ESPECIFICAÇÕES | |
| Quadro | All New Series 4 Alloy Quadro, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
| Suspensão | RockAmortecedor 35 Silver R 29″, Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset |

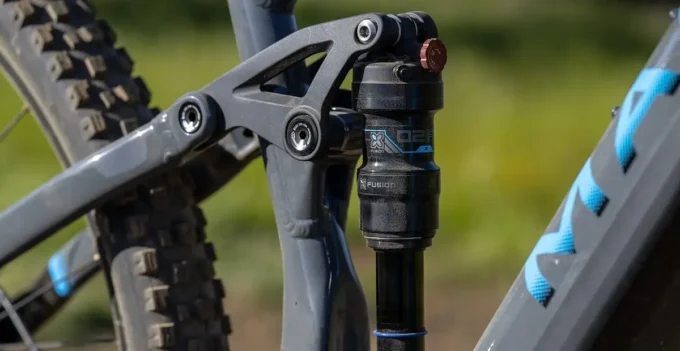

| Amortecedor | X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210×50 25xM8 Lower Mount & Upper Mount |
| Aros | Marin Aluminum Double Wall, 29″ Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Cubo Traseiro | Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body |
| Cubo Dianteiro | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H |
| Raios | 14g Black Stainless Steel |
| Pneus | Vee Tire Co. Attack HPL, 29×2.5″, Top 40 Tubeless Compatible, Override E-Specific Casing |
| Desviador Traseiro | Shimano Deore, Direct Attachment, 10-Speed SGS |
| Manípulo de mudança | Shimano Deore, 10-Speed |
| Pedaleiro | Aluminum, 160mm Length, 38t Chainring |
| Motor | Shimano Steps EP6 Drive Unit, 250W, 85Nm |
| Corrente | KMC X-10E, Silver |
| Cassete | Shimano Deore 10-speed 11-46T |
| Travão Dianteiro | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor |
| Travão Traseiro | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor |
| Manetes de travão | TRP Slate Evo |
| Guiador | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Avanço | Marin 3D Forged Alloy, 35mm |
| Punhos | Marin Grizzly Lock On |
| Caixa de direção | FSA No 57E, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2” |
| Espigão de selim | TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm |
| Selim | Marin eMTB Saddle |
| Pedais | Marin MTB Plastic |
| Bateria | Shimano BT-EN805L, Internal 504Wh |

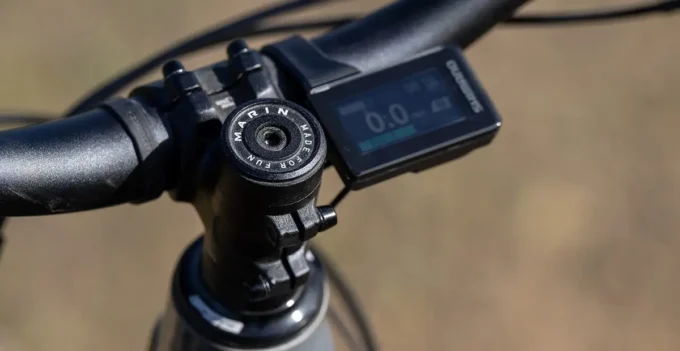

| Monitor | Shimano SC-E600 |
| Comando elétrico | Shimano SW-EN600L Left Hand Switch for Assist Mode Change |
| Extras | Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide |
| GEOMETRIA | ||||
 |
||||
| S | M | L | XL | |
|---|---|---|---|---|
| [A] Stack (mm) | 606.98 | 614.04 | 625.1 | 634.16 |
| [B] Alcance (Reach) (mm) | 445 | 465 | 485 | 515 |
| [C] HEAD TUBE ANGLE | 65° | 65° | 65° | 65° |
| [D] HEAD TUBE LENGTH | 100 | 110 | 120 | 130 |
| [E] SEAT TUBE ANGLE | 77° | 77° | 77° | 77° |
| [F] SEAT TUBE LENGTH | 390 | 400 | 425 | 435 |
| [G] TOP TUBE EFFECTIVE | 585.13 | 607.22 | 629.32 | 661.41 |
| [H] Altura do eixo pedaleiro (mm) | 348.5 | 348.5 | 348.5 | 348.5 |
| [I] Drop do Eixo Pedaleiro (mm) | 32 | 32 | 32 | 32 |
| [J] Comprimento da Escora (mm) | 440 | 440 | 440 | 440 |
| [K] Distância entre eixos (mm) | 1198.29 | 1222.52 | 1246.74 | 1280.97 |
| [L] Standover (mm) | 693.65 | 696.01 | 709.94 | 719.93 |
| [M] Rake da Forqueta/Offset (mm) | 42 | 42 | 42 | 42 |
| Diâmetro do espigão do Selim (mm) | 30.9 | 30.9 | 30.9 | 30.9 |
| Largura do Guiador (mm) | 780 | 780 | 780 | 780 |
| Comprimento do Avanço (mm) | 35 | 35 | 35 | 35 |
| Comprimento do Pedaleiro (mm) | 160 | 160 | 160 | 160 |
| Tamanho | S, M, L, XL |
|---|
